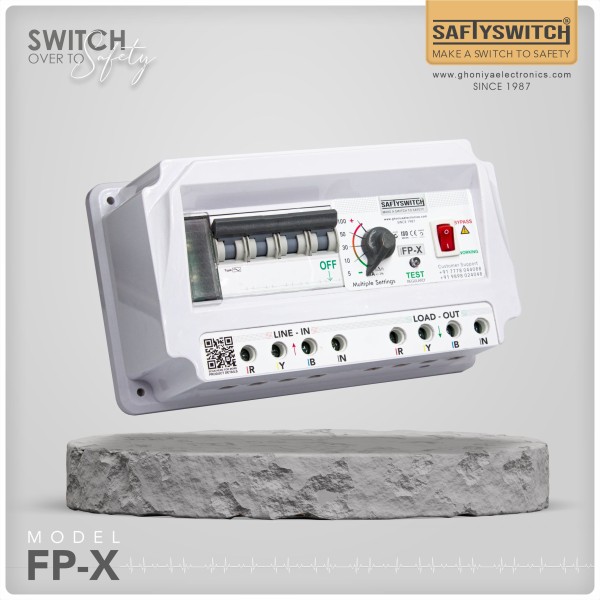

Model: SAFTYSWITCH FP-X
Type: RCBOS (RCCB+MCB)
SAFTYSWITCH FP-X MODEL PROVIDE PROTECTION AGAINST:
– ELECTRIC SHOCK PROTECTION (Human Safety)
– SHORT CIRCUIT UP TO 10KA (As Per Wire Size with Respect to MCB Ratings)
– Un-wanted OVER VOLTAGE or HIGH VOLTAGE SPIKES PROTECTION
– TWO PHASING PROTECTION TO INSTRUMENTS
– GROUND FAULTS DETECTION
– OVER LOAD PROTECTION
– EARTH LEAKAGE TRIPPING
– POWER WASTAGE DETECTION
And Other Silent Features (All Protection not Working in By-pass Mode)
FEATURES OF PRODUCT:
– Time Interval Siren With Timer Up to 5 Minutes
– Tripping LED Indication
– Adjustable Leakage Sensitivity as 5mA, 10mA, 30mA, 50mA, 100mA
– Emergency By-Pass Facility (Safety Functions not working in bypass mode)
– Degree of Protection=IP 20
– Built In 100A Copper Conductive Connector Block
– Corrosion Proof Heavy ABS Cabinet.
TECHNICAL DETAILS
Rated Current : B 25A, 32A, 40A, 63A
Number of Poles : 4 ( ISI MCB Designed by German Technology)
Rated breaking capacity : 10kA, 415V AC, 50 Hz,
Operating Range: 100-290 V AC
Rated Residual Operating Time : 0.1S
Degree of protection : IP20
Tripping type : Instantaneous.
