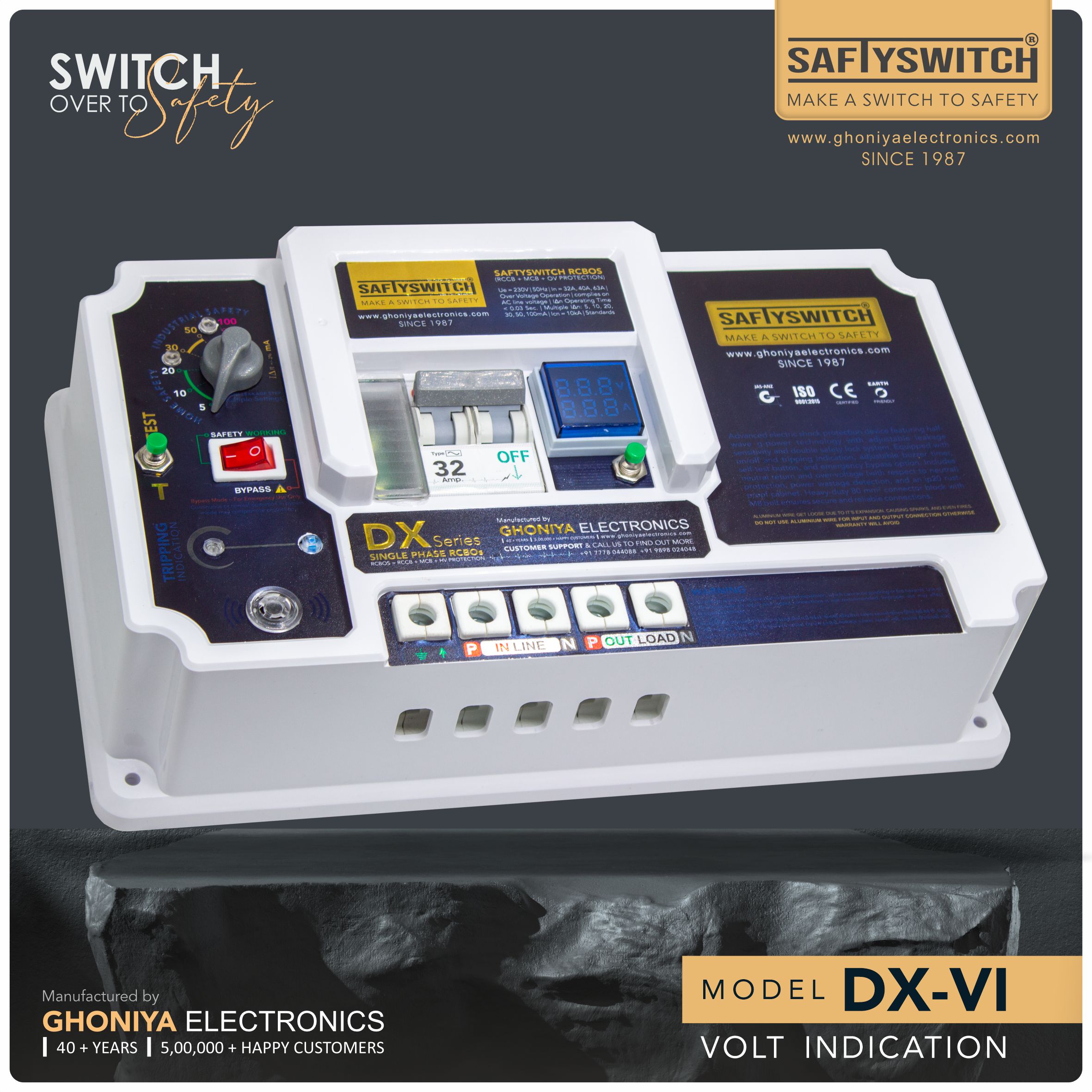

The SAFTYSWITCH DXVI is a 2-pole single-phase RCBO (Residual Current Circuit Breaker with Overload Protection) designed to provide complete electrical protection for residential, commercial, and industrial applications. It combines RCCB and MCB functions with advanced safety and monitoring features.
Main Functions (Protections)
Earth Leakage Protection
Detects leakage current flowing to earth and instantly disconnects the power supply to help prevent electric shock and electrocution.
Overload Protection
Protects electrical wiring from overheating and damage caused by excessive current flow.
Short Circuit Protection
Trips immediately during short circuit faults to protect wiring, electrical panels, and connected appliances from severe damage.
Fire Protection
The RCBO trips early during leakage or abnormal fault conditions that may cause electrical fire hazards.
Combined RCCB + MCB Protection
The DXVI integrates:
- RCCB protection → leakage current and electric shock protection
- MCB protection → overload and short circuit protection
This provides multiple protections in one compact device.
Individual Circuit Protection
Each connected circuit receives dedicated protection, improving fault isolation and electrical safety.
Over Voltage Protection
Protects appliances and electrical equipment from dangerous high-voltage conditions.
G-Power Protection
Provides protection against electric shock even when the neutral line is absent or faulty.
For correct operation, the ground wire must be connected on the input side.
Two Phasing Protection
Protects appliances and systems from abnormal phase-neutral supply conditions.
Neutral Return Protection
Detects unsafe neutral return conditions and disconnects the supply for enhanced safety.
Features of SAFTYSWITCH DXVI
Adjustable Leakage Current Settings
The leakage current sensitivity can be adjusted according to safety requirements:
- 5mA
- 10mA
- 20mA
- 30mA
- 50mA
- 100mA
This allows flexible protection for different applications.
Double Safety Lock System
Enhances operational safety for both residential and industrial environments.
Manual ON/OFF Tripping Indication System
Clearly indicates whether the RCBO is ON, OFF, or tripped for easier monitoring and maintenance.
Tripping Buzzer Indication with Auto Cut-Off Timer
An audible buzzer alerts users during tripping conditions and automatically turns off after a set time.
Heavy 80mm² Wire Connection Capacity
Supports large wire sizes for heavy electrical load applications.
Durable Rust-Proof Unique Cabinet Design
Built with a strong, corrosion-resistant cabinet for long-lasting durability and reliability.
Inbuilt MCB Protection Guard
Provides additional safety and mechanical protection to the internal MCB section.
Emergency Bypass System
Allows temporary bypass operation during critical situations where uninterrupted power is required.
Self-Testing Functions
Includes built-in testing capability to verify that protection systems are functioning correctly.
Tripping LED Indication
LED indicators provide clear visual fault and trip status information.
Line Voltage Indication System
Displays the supply line voltage status for easy electrical monitoring.
2-Pole Single Phase RCBO
Designed for single-phase electrical systems with integrated:
- RCCB protection
- MCB protection
- Over voltage protection
This makes the DXVI a complete and advanced electrical safety solution in one device.
